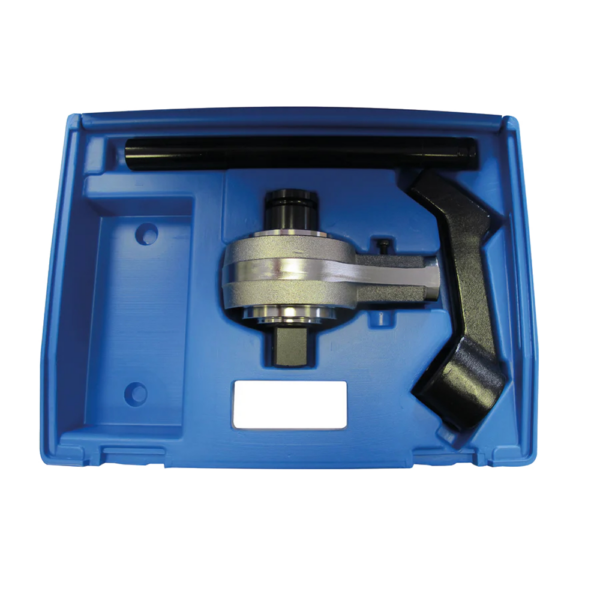

SYK800655 – SYKES TORQUE WRENCH MULTIPLIER 1″DR
KEY FEATURES
Motorq’ Heavy Duty Torque Multipliers
Single stage epicyclic gears, producing a 5 : 1 multiplication ratio
Use with conventional torque wrenches for heavy duty applications
Supplied with reaction bars, in plastic storage case
After-sales service available
Ratio 5:1
Input Drive 3/4 inch square drive / 36mm hex
Max. Input 540Nm
Output Drive 1 inch
Max. Output 2700Nm
Weight kg 4.5
Spare Parts:
80060270 – 3/4 square drive -Post 1994-
80065300 – Reaction Bar
80060370 – 3/4 square drive -Pre 1994-
80060400 – Reaction Foot
Description
KEY FEATURES
Motorq’ Heavy Duty Torque Multipliers
Single stage epicyclic gears, producing a 5 : 1 multiplication ratio
Use with conventional torque wrenches for heavy duty applications
Supplied with reaction bars, in plastic storage case
After-sales service available
Ratio 5:1
Input Drive 3/4 inch square drive / 36mm hex
Max. Input 540Nm
Output Drive 1 inch
Max. Output 2700Nm
Weight kg 4.5
Spare Parts:
80060270 – 3/4 square drive -Post 1994-
80065300 – Reaction Bar
80060370 – 3/4 square drive -Pre 1994-
80060400 – Reaction Foot
SPECIFICATIONS
CODE: SYK800655
BARCODE: 5012737956104
HEIGHT: 27cm
LENGTH: 38.5cm
WIDTH: 10.5cm
Product Details
KEY FEATURES
Motorq’ Heavy Duty Torque Multipliers
Single stage epicyclic gears, producing a 5 : 1 multiplication ratio
Use with conventional torque wrenches for heavy duty applications
Supplied with reaction bars, in plastic storage case
After-sales service available
Ratio 5:1
Input Drive 3/4 inch square drive / 36mm hex
Max. Input 540Nm
Output Drive 1 inch
Max. Output 2700Nm
Weight kg 4.5
Spare Parts:
80060270 – 3/4 square drive -Post 1994-
80065300 – Reaction Bar
80060370 – 3/4 square drive -Pre 1994-
80060400 – Reaction Foot
Description
KEY FEATURES
Motorq’ Heavy Duty Torque Multipliers
Single stage epicyclic gears, producing a 5 : 1 multiplication ratio
Use with conventional torque wrenches for heavy duty applications
Supplied with reaction bars, in plastic storage case
After-sales service available
Ratio 5:1
Input Drive 3/4 inch square drive / 36mm hex
Max. Input 540Nm
Output Drive 1 inch
Max. Output 2700Nm
Weight kg 4.5
Spare Parts:
80060270 – 3/4 square drive -Post 1994-
80065300 – Reaction Bar
80060370 – 3/4 square drive -Pre 1994-
80060400 – Reaction Foot
SPECIFICATIONS
CODE: SYK800655
BARCODE: 5012737956104
HEIGHT: 27cm
LENGTH: 38.5cm
WIDTH: 10.5cm
