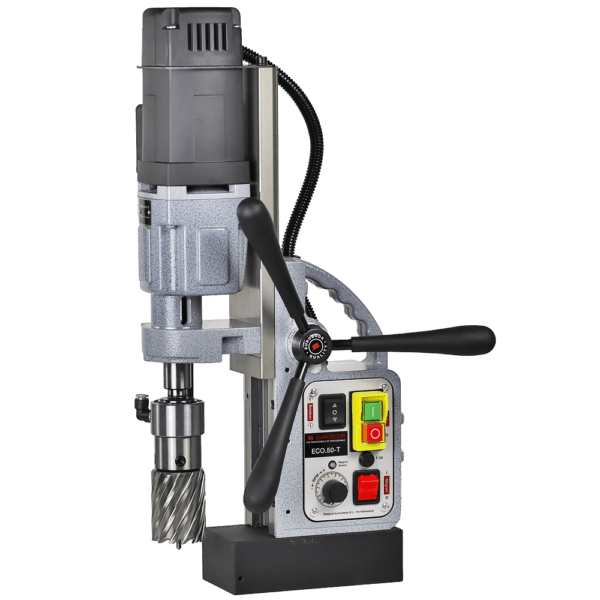

HTC-ECO50-T – EUROBOOR MAG DRILL 50MM TAPPING FUNCTION
KEY FEATURES
Magnetic drilling machine, annular cutters max. dia 50 millimetre, power supply tension 220 – 240 Volt, power supply frequency 50
– 60 Hertz, rotation direction bidirectional
Overheat protection
Magnet LED indicator
Tapping
Adjustable speed
Right / left rotation
minimum diameter threading (millimetre) M3
maximum diameter threading (millimetre) M20
minimum diameter annular cutters (millimetre) 12
maximum diameter annular cutters (millimetre) 50
minimum diameter countersinking (millimetre) 10
maximum diameter countersinking (millimetre) 55
minimum diameter twist drills (millimetre) 1
maximum diameter twist drills (millimetre) 23
connection 1 model inside
connection 1 size (millimetre) 19.05
connection 2 morse taper / drill chuck class MT3
connection 1 type Weldon
connection 2 model outside
connection 2 type morse taper
Stroke (millimetre) 170
Magnet length (millimetre) 170
Magnet width (millimetre) 85
Magnet height (millimetre) 48
Minimum height (millimetre) 385
Maximum height (millimetre) 540
Rotation direction bidirectional
Type of gear box lubrication grease
Magnetic force (kilogram) 1850
Electric rotation speed adjustment yes
Supply
Motor power (Watt) 1250
Total power (Watt) 1375
Power supply frequency (Hertz) 50 – 60
Power supply current AC
Power supply connection EU plug according CEE 7/7
Power supply source mains supply
Power supply type electric
Power supply tension (Volt) 220 – 240
Description
