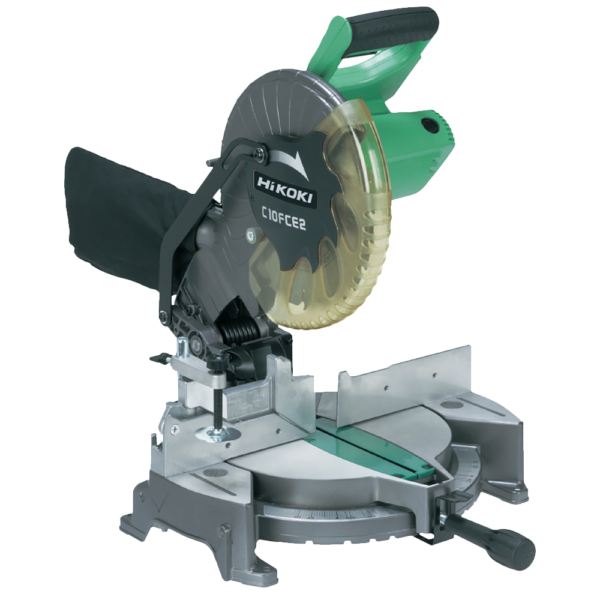

HTC-C10FCE2 – HIKOKI MITRE SAW 255MM 1520W

KEY FEATURES

Compound Mitre Saw 255mm 1520W

Features

Thumb actuated positive miter stops for quick and easy adjustment

Soft grip handle

Equipped with chip deflector

Pivoting Sub-Fence for supporting larger stock

Specifications

Capacity: Blade Dia. 255mm

(HxW) Cross Cut: 0 degrees 59x144mm or 89x101mm
              Mitre Cut: 45 degrees 59x102mm or 89x70mm
              Mitre Cut: 52 degrees 59x89mm or 89x54mm
              Bevel Cut: 45 degrees 41x144mm
Compound:

Mitre 45 degrees and Bevel 45 degrees 41x102mm

Power Input 1 520W

No Load Speed 5 000 per minute

Mitre Angle: Right 0 – 52 degrees
                      Left 0 – 52 degrees

Bevel Angle: Left 0 – 45 degrees

Positive Angle Stop 0, 15, 22.5, 31.6 and 45 degrees

Dimensions 460 x 628 x 561mm

Weight 11.5kg

Standard Accessories Blade, Dust Bag, Wrenches,

Sub Fence, Vise Ass’y

Description
KEY FEATURES

Compound Mitre Saw 255mm 1520W

Features

Thumb actuated positive miter stops for quick and easy adjustment

Soft grip handle

Equipped with chip deflector

Pivoting Sub-Fence for supporting larger stock

Specifications

Capacity: Blade Dia. 255mm

(HxW) Cross Cut: 0 degrees 59x144mm or 89x101mm
              Mitre Cut: 45 degrees 59x102mm or 89x70mm
              Mitre Cut: 52 degrees 59x89mm or 89x54mm
              Bevel Cut: 45 degrees 41x144mm
Compound:

Mitre 45 degrees and Bevel 45 degrees 41x102mm

Power Input 1 520W

No Load Speed 5 000 per minute

Mitre Angle: Right 0 – 52 degrees
                      Left 0 – 52 degrees

Bevel Angle: Left 0 – 45 degrees

Positive Angle Stop 0, 15, 22.5, 31.6 and 45 degrees

Dimensions 460 x 628 x 561mm

Weight 11.5kg

Standard Accessories Blade, Dust Bag, Wrenches,

Sub Fence, Vise Ass’y

SPECIFICATIONS

CODE: HTC-C10FCE2
BARCODE: 4966376290475
HEIGHT: 41cm
LENGTH: 52.3cm
WIDTH:  35cm
